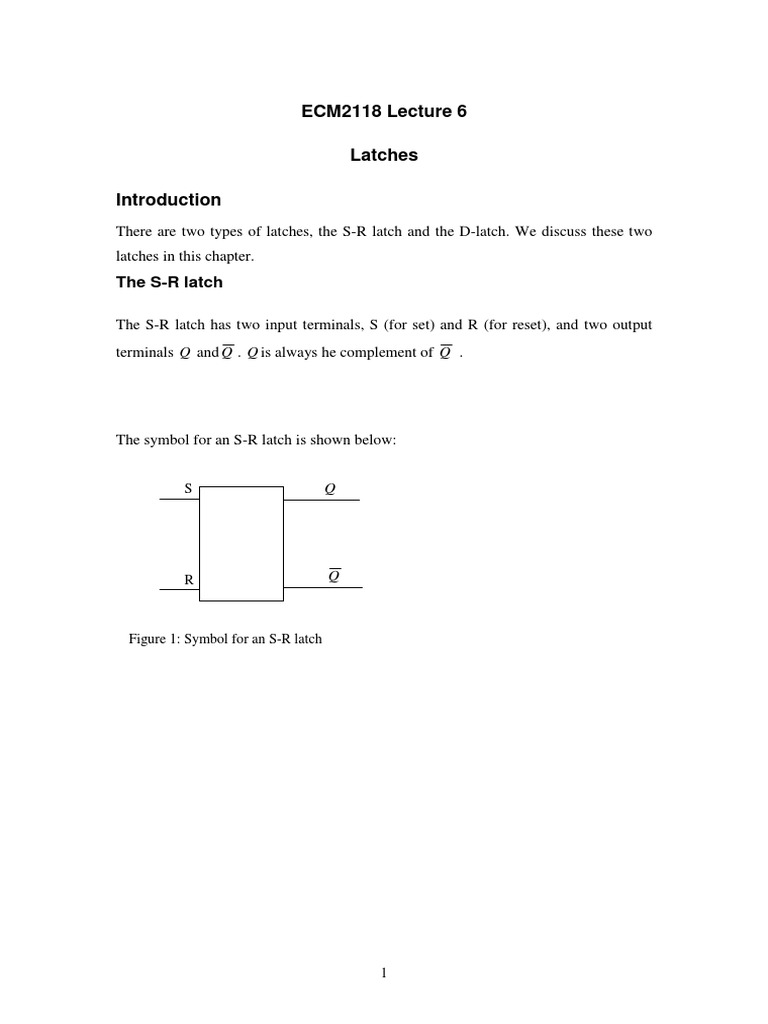

ECM2118 Lecture 6

Latches
Introduction
There are two types of latches, the S-R latch and the D-latch. We discuss these two
latches in this chapter.

The S-R latch

The S-R latch has two input terminals, S (for set) and R (for reset), and two output
terminals Q and Q . Q is always he complement of Q .

The symbol for an S-R latch is shown below:

S

Figure 1: Symbol for an S-R latch

And the truth table for the S-R latch is as shown:

Table 1: Truth Table for the S-R latch
Latch Inputs

Present

Latch Next Latch

Output

output

Qn

Qn+1

Latch Behaviour

No change in State

Set Operation

Reset operation

Indeterminate operation

Explanation of the Truth Table

In the table Qn represents the present state of the Q output and Qn+1 represents the next
state of the Q output after the input terminals have been taken HIGH or LOW.
1.

When both S and R are LOW the logical states of the output terminal do not
change. This is shown by Qn +1 = Qn .

2.

When S=1 and R=0 the logical state of the output Q will become 1 no matter

what its value was before. This is known as the set operation.
3.

If S=0 and R=1 the logical state of the output Q will become 0 no matter what its

value was before. This is known as the reset operation.

4.

If both S and R are 1 the operation of the latch is unpredictable. This

combination of input states should not be allowed to occur.

Implementation of the S-R latch using NOR gates:

Q

Q
Figure 2: Nor gate implementation of the S-R latch

The operation has to be analyzed with the 4 possible input combinations together with
the 2 possible previous states.
No Change Condition: Inputs S = 0 and R = 0:
A: Assuming the Initial Condition Q = 1 and Q = 0:
The output Q after input is applied would be:
Q = (R + Q )' = 1 and Q = (S + Q)' = 0.

B: Assuming the Initial Condition Q = 0 and Q = 1:

The output Q after the input applied would be:
Q = (R + Q )' = 0 and Q = (S + Q)' = 1.
Conclusion: Therefore it is clear that when both S and R inputs are LOW, the output
is retained as before the application of inputs. (i.e. there is no state change).

Set Operation: S = 1 and R = 0:

Q =1

S=1

R=0

Q =0
Figure 3: Set Operation: S =1 and R = 0

A: Assuming the Initial Condition Q = 1 and Q = 0:

The output Q after input is applied would be:
Q = (R + Q )' = 1 and Q = (S + Q)' = 0.

B:Assuming the Initial Condition Q = 0 and Q = 1:

The output Q after the input applied would be:
Q = (R + Q )' = 1 and Q = (S + Q)' = 0.

So in simple words when S is HIGH and R is LOW, output Q is HIGH.

Reset Operation: S = 0 and R = 1:

Q=0

S=0

R=1

Q =1
Figure 4: Reset Operation: S =0 and R = 1

A: Assuming the Initial Condition Q = 1 and Q = 0:

The output Q after input is applied would be:
Q = (R + Q )' = 0 and Q = (S + Q)' = 1.

B:Assuming the Initial Condition Q = 0 and Q = 1:

The output Q after the input applied would be:
Q = (R + Q )' = 0 and Q = (S + Q)' = 1.

So in simple words when S is LOW and R is HIGH, output Q is LOW.

Indeterminate operation: S = 1 and R = 1:

Q=?

S=1

R=1

Q =?
Figure 5: Indeterminate Operation: S =1 and R = 1

A: Assuming the Initial Condition Q = 1 and Q = 0:

The output Q after input is applied would be:
Q = (R + Q )' = 0 and Q = (S + Q)' = 0.

B:Assuming the Initial Condition Q = 0 and Q = 1:

The output Q after the input applied would be:
Q = (R + Q )' = 0 and Q = (S + Q)' = 0.

No matter what state Q and Q are in, application of 1 at input of NOR gate always
results in 0 at output of NOR gate, which results in both Q and Q set to LOW (i.e. Q
= Q ). LOW in both the outputs basically is wrong, so this case is invalid.

Implementation of the S-R latch using NAND gates:

Q
R
Figure 6: Nand gate implementation of the S-R latch

This circuit is a basic NAND latch. The inputs are generally designated S and R for
"Set" and "Reset" respectively. This is because the NAND inputs must normally be
logic 1 to avoid affecting the latching action, the inputs are considered to be inverted
in this circuit.
Table 2: NAND S-R Latch Truth Table
Latch Inputs

Present
Output

Latch Next Latch

output

Qn

Qn+1

Latch Behaviour

Indeterminate operation

Set Operation

Reset operation

No change in State
(Keep State)

Clocked S-R latches

The simple S-R latches above respond to changes as soon as they occur. This may cause the
latch to respond to unwanted signal changes or noise, thereby giving rise to glitches in the
circuit.
To avoid this we introduce a control signal which is called the clock signal. This is a
repetitive square wave signal. When the clock signal is HIGH, the latch can be allowed to
accept inputs, and when the clock signal is LOW the latch does not accept any signal changes.
The clocked S-R NOR latch

Control signal C is used to gate the input S and R to the RS Latch. When C is HIGH,
both the AND gates act as buffers and thus R and S appears at the RS latch input and
it functions like a normal RS latch. When C is LOW, it drives LOW to both inputs of
RS latch. As we saw in previous page, when both inputs of a NOR latch are low,
values are retained (i.e. the output does not change).

Q
S
C
R

Q
Figure 7: Clocked S-R NOR latch

The clocked S-R NAND latch

Q
R
NAND Gate
Figure 8: Clocked S-R NAND latch

By adding a pair of NAND gates to the input circuits of the RS latch, we accomplish
two goals: normal rather than inverted inputs, and a third input common to both gates
which we can use to synchronize this circuit with others of its kind.
The clocked RS latch circuit is very similar in operation to the basic latch. The S and
R inputs are normally at logic 0, and must be changed to logic 1 to change the state of
the latch. The NAND gates ensure that the output can only change state while the
clock signal C is logic 1. When C is logic 0, the S and R inputs will have no effect.

The D Latch
A D latch has one input, labelled D, one enable or clock input, and one output Q. The
logical state of the D input is transferred to the output whenever the clock input is
HIGH. The Q output will follow any changes in the logical state of the D input as
long as the clock input remains HIGH. When the clock input goes LOW the logical
state of the D input at that moment will be retained at the Q output no matter what
changes occur at the D input. When the clock input goes HIGH again the Q output
will once again follow any changes in the logical state of the D input. A D latch is
therefore said to be transparent when the clock is HIGH.
The symbol for a D latch is shown below:
D

Q
Clk

Figure 9: Symbol for a D latch

and the truth table is as shown:

Table 3: D Latch Truth Table

D

Qn+1

10

Construction of D-Latches
A D latch can be constructed from a clocked S-R flip flop by adding an inverter as shown:

Clk

Q
R
Figure 10: Adding an inverter to an S-R latch to get a D latch

For a clocked S-R NOR latch the D latch is obtained as shown:

Q
D

S
Clk

Q
Figure 11: Adding an inverter to a NOR S-R latch to get a D latch
