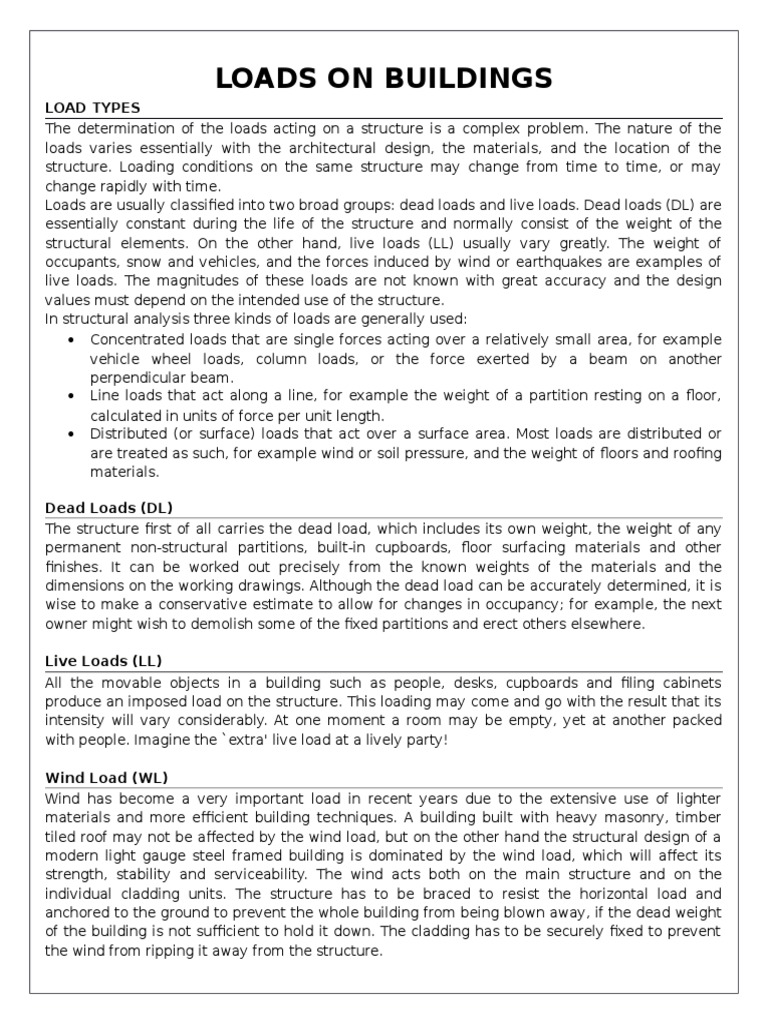

LOAD TYPES
The determination of the loads acting on a structure is a complex problem. The nature of the
loads varies essentially with the architectural design, the materials, and the location of the
structure. Loading conditions on the same structure may change from time to time, or may
change rapidly with time.
Loads are usually classified into two broad groups: dead loads and live loads. Dead loads (DL) are
essentially constant during the life of the structure and normally consist of the weight of the
structural elements. On the other hand, live loads (LL) usually vary greatly. The weight of
occupants, snow and vehicles, and the forces induced by wind or earthquakes are examples of
live loads. The magnitudes of these loads are not known with great accuracy and the design
values must depend on the intended use of the structure.
In structural analysis three kinds of loads are generally used:
Concentrated loads that are single forces acting over a relatively small area, for example
vehicle wheel loads, column loads, or the force exerted by a beam on another
perpendicular beam.
Line loads that act along a line, for example the weight of a partition resting on a floor,
calculated in units of force per unit length.
Distributed (or surface) loads that act over a surface area. Most loads are distributed or
are treated as such, for example wind or soil pressure, and the weight of floors and roofing
materials.
Dead Loads (DL)
The structure first of all carries the dead load, which includes its own weight, the weight of any
permanent non-structural partitions, built-in cupboards, floor surfacing materials and other
finishes. It can be worked out precisely from the known weights of the materials and the
dimensions on the working drawings. Although the dead load can be accurately determined, it is
wise to make a conservative estimate to allow for changes in occupancy; for example, the next
owner might wish to demolish some of the fixed partitions and erect others elsewhere.
Live Loads (LL)
All the movable objects in a building such as people, desks, cupboards and filing cabinets
produce an imposed load on the structure. This loading may come and go with the result that its
intensity will vary considerably. At one moment a room may be empty, yet at another packed
with people. Imagine the `extra' live load at a lively party!
Wind Load (WL)
Wind has become a very important load in recent years due to the extensive use of lighter
materials and more efficient building techniques. A building built with heavy masonry, timber
tiled roof may not be affected by the wind load, but on the other hand the structural design of a
modern light gauge steel framed building is dominated by the wind load, which will affect its
strength, stability and serviceability. The wind acts both on the main structure and on the
individual cladding units. The structure has to be braced to resist the horizontal load and
anchored to the ground to prevent the whole building from being blown away, if the dead weight
of the building is not sufficient to hold it down. The cladding has to be securely fixed to prevent
the wind from ripping it away from the structure.
LOADS ON BRIDGES
Permanent Loads:
Dead Loads
The dead loads of a bridge are all the loads from the superstructure, such as, the wearing
surface, the deck, the stay-in-place forms, parapets, sidewalks, railings, bracing, connection
plates, stiffeners, signing and utilities
Superimposed Dead Loads
The superimposed dead loads are those loads placed on the superstructure after the deck has
cured, and thus has begun to work with the primary members. These are sidewalks, railings,
parapets, signing, utilities and the wearing surface.
Pressures (earth, water, ice, etc.)
Temporary Loads:
Vehicle Live Loads
A live load is any load that moves along a bridge. AASHO in 1935 came up with the concept of a
train of trucks, which is seen below, and identified as the H-20-35 and H-15-35. In 1944, the
much heavier trucks (due to WWII) were the new five truck categories were, the H10-44 (20,000
lb), the H15-44 (30,000 lb), the H20-44 (40,000 lb), the HS15-44 (54,000 lb) and the HS20-44
(72,000 lb). All of these are still valid except for the H10-44, which has been dropped.
Earthquake Forces
Earthquake forces are a natural force that depends on the geographical location of the bridge.
These forces are temporary, and act for a short duration of time. The application of these forces
to the bridge is usually studied with their effect upon piles, pile caps and abutments, via the
Mononobe-Okabe analysis method.
There are four factors that are taken into consideration to determine the magnitude of the
seismic forces:
1) The dead weight of the entire bridge;
2) The ground acceleration (all three axes);
3) The period of vibration, and
4) The type of soils or rocks serving as bearing for the bridge.
Wind Forces
Similar to the earthquake forces, wind forces are extremely complicated, but through a series of
simplifications are reduced to an equivalent static force applied uniformly over the exposed faces
of the bridge (both super and sub-structures) that are perpendicular to the longitudinal axis.
Channel Forces
Channel forces come from the stream flow, floating ice and buoyancy. These forces affect
primarily the sub-structure.
Longitudinal Forces
Longitudinal forces result from the transfer of momentum from the truck braking or accelerating
on a bridge.
Centrifugal Forces
A truck turning on a bridge, because of a horizontal curve exerts a centrifugal force, as
calculated below, and located 6 feet above the top of the deck surface, using truck loading.
Impact Forces
Construction Loads
The heavy equipment that may mount the bridge, staging materials, and other problems add
these loads to the bridge analysis.
Deformation and Response Loads:
Creep
Creep is the deformation of a concrete mass caused by carrying a load over a period of time.
Shrinkage
It is a consequence of the natural change in volume of concrete, and not related to load. The
shrinking is due to the loss of moisture during its drying.
Settlement
Settlement can have one or several causes, including (1) exceeding the bearing capacity of the
soils, (2) lowering of the phreatic surface, (3) vibrations, (4) loading the embankments, and (5)
changes in the soil properties (for example, shrinkage and swelling).
Uplift
Some bridge configurations may produce the lifting of a span with respect to its adjacent
elements.
Thermal Forces
The fluctuations in temperature in a bridge may be very high, and produce sizable thermal
forces. This force is similar in nature to differential settlement.
Group Loading Combinations.
