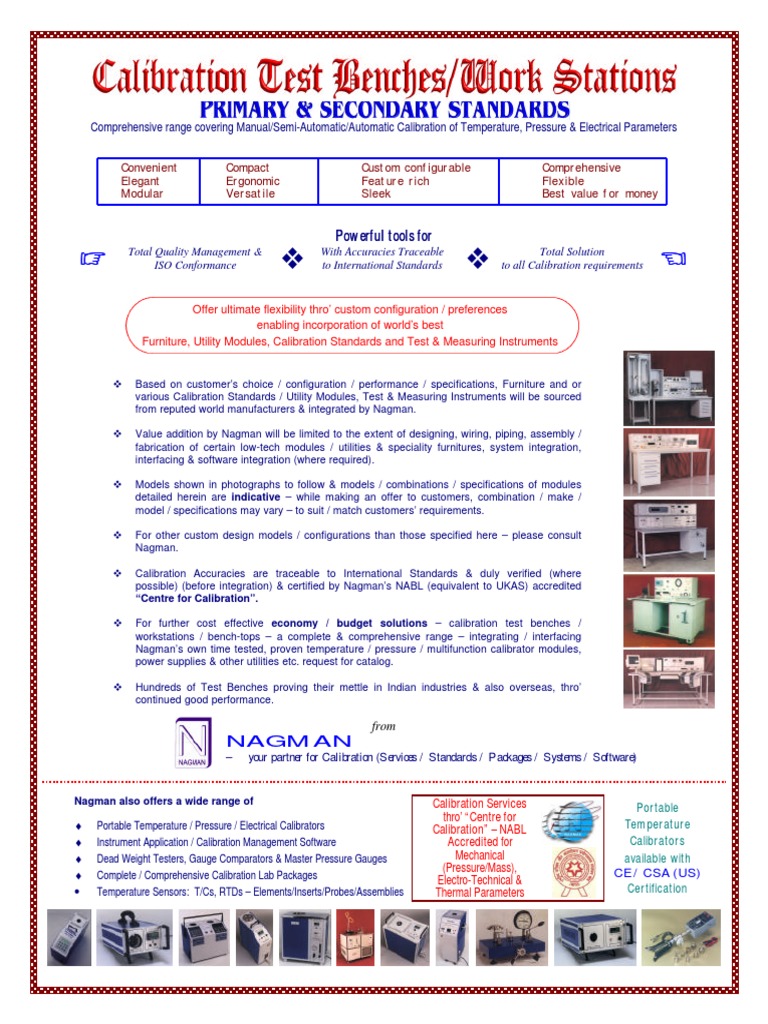

v Value addition by Nagman will be limited to the extent of designing, wiring, piping, assembly /
fabrication of certain low-tech modules / utilities & speciality furnitures, system integration,
interfacing & software integration (where required).
v For other custom design models / configurations than those specified here – please consult
Nagman.
v Calibration Accuracies are traceable to International Standards & duly verified (where
possible) (before integration) & certified by Nagman’s NABL (equivalent to UKAS) accredited
“Centre for Calibration”.
v For further cost effective economy / budget solutions – calibration test benches /
workstations / bench-tops – a complete & comprehensive range – integrating / interfacing
Nagman’s own time tested, proven temperature / pressure / multifunction calibrator modules,
power supplies & other utilities etc. request for catalog.
v Hundreds of Test Benches proving their mettle in Indian industries & also overseas, thro’
continued good performance.
from
NAGMAN
– your partner for Calibration (Services / Standards / Packages / Systems / Software)
Applications
• Precise measurement of Low (gauge) Pressure / Vacuum / Differential Pressure thro’ very high precision primary standards
– Manometers / Micromanometers (choose & specify range).
All these manometers measure positive / negative & differential pressure (* hpa/mbar scales also available)
• Precise Measurement of Medium Pressure (Pneumatic) & High Pressure (Hydraulic) thro’
Precision Dead Weight Testers (Single / Dual Piston).
Ranges : Pneumatic : Vacuum to 70 bar; Hydraulic : upto 1100 Bar (several Models).
Accuracies : 0.025% / 0.015% / 0.008% reading.
• Cascading of the above thro’ menu-driven High Precision Digital Pressure (Calibrators) Indicators (0.05% / 0.025% FS
Accuracy) and / or High Accuracy (0.1% / 0.25%) Analog Master Gauges (250/160 mm dial size) or 68 mm Scale Diameter
Multi-turn Gauges (for fast calibration of routine pressure instruments / devices) (optional) (please see Code 1.01/1.12)
• As an economic alternative to the above Low Pressure Measurement, Precision Vertical Column Single / Limb (well type),
Direct Reading Dual Scale Manometers, Mercury / Water filled can be offered.
Inclined Manometer Range : ±200 mmWC, Resolution 0.1 mmWC can be offered for Ultra Low Pressure Measurement.
v Pressure / Vacuum generation & control thro’ Mimic Panel incorporating Air Set consisting of :
• Quick disconnect couplings, with built-in shut off valves, for all pressure inputs & outputs to connect the various instruments in
the test bench
• 63 mm/3" Dial air supply / output pressure gauges.
• Hand Pumps 0 to 5 Bar (g) and 0 – 750 mbar (vac.) and coarse/fine adjustment regulators.
• Pneumatic circuit with two pressure regulators (0.1 mbar sensitivity), each having independent output. Additional
pneumatic circuit with one independent high precision pressure regulator (0.1 mbar resolution) and two outputs.
• The Mimic Panel is specially hand engineered and coloured on alloy plate, brushed & anodized.
2
Nagman
v Calibration of Receiver Pneumatic Instruments at 6 preset points using See Code 1.08
High Precision Digital Pressure Controller
v Very High Precision Multifunction Calibrator - Temperature / Electrical Calibration Module See Code 1.02
Benchtop & Work Table : Made of high quality chip board with Melamine Resin coating (antistatic
available). All sides covered with 2 mm bump resistance rounded PVC coating.
Benchtop : Modular rack design with space for tool storage & future add-ons.
Benchtop & Cup Boards : Removable to facilitate easy shifting
Underbench Cabinet: With lockable drawers
Dead Weight Tester housing: Pullout (while in use) / pushback (storing) design.
Approximate Dimensions: 2100 x 1000 x 1700 mm (W x D x H)
Weight : 500 Kgs.
* For detailed specifications on above modules / facilities & also a wider range of Calibration / Test & Measuring Instrument
Modules / Utilities / Accessories available as options, please see Annexure 1 & 2.
v High Precision Controller / Calibrator (for Higher end Versions – consult us)
- Pneumatic Gauge, Absolute & Compound Gauge / Range Vacuum to 10 Mpa
- Resolution 10 PPM / Typical Stability: ±0.005% reading / Precision 0.005% / 0.008% reading
- Control Precision upto ±0.002% reading
3
Nagman
Applications
• Calibration & Testing of Pneumatic, Hydraulic & Electronic Process Instruments such as
- Pressure / Differential Pressure Transmitters, Switches, Gauges, Calibrators.
- Electro-Pneumatic Converters : I/P, P/I; I/I & I/U
- Recorders & Indicators
Standard Features include *
• Very Low Pressure / Vacuum, Differential, Medium & High Pressure Test & Measurement See Code 1.01
Thro’ 2 or 3 Microprocessor based Pressure Calibrator Modules (Pneumatic / Hydraulic), rack mounted,
with Internal / External Pressure Modules, with quick disconnect Pressure inlet / outlet ports.
(Choose from) Ranges (typical) -1 to 2 bar, -0.1 to 100 mbar, -0.5 to 500 mbar
-0.95 to 1 bar, -1 to 20 bar
0 to 35 bar / 70 bar / 150 bar / 350 bar / 700 bar
Accuracies: 0.05% FS or 0.025% FS Resolution: 6 Digit
v Air Set – Pneumatic Air Supply module See Code 1.11
Pressure Gauge with Regulator 2
Input Gauge accuracy: 1.6%(63 mm dial size/ range: (0…10 bar or kgf/cm )) 2
Output Gauge accuracy: 1.6%(63 mm dial size/ range: (0…1.6/2.5 / 10bar or kgf/cm ))
Output Ports (Couplings/Fittings)
2
Note: Incoming Air Supply of Max. 7 Kg/cm pressure to be provided by user
v External Pressure Pumps with Vernier adjustment, Divider cum Mounting Blocks & See Code 1.10
Connecting Hoses.
Ranges Pneumatic -0.85 to 2 bar / 20 bar / 40 bar
Hydraulic 0 to 200 bar / 700 bar
v High Precision Preset Digital Pressure Controller See Code 1.08
Range 0 to 1.6 / 2.5 bar Resolution 0.005% F.S.
Stability 0.01% F.S. Accuracy ±0.1% F.S.
v Very High Precision Multifunction Calibrator - Temperature / Electrical Calibration Module See Code 1.02
Benchtop & Work Table : Made of high quality chip board with Melamine Resin coating (antistatic
available). All sides covered with 2 mm bump resistance rounded PVC coating.
Benchtop : Modular rack design with space for future add-ons.
Underbench Cabinet : With lockable drawers.
Approximate Dimensions: 1600 x 1000 x 1400 mm (W x D x H)
Weight : 300 Kgs.
* For detailed specifications on above modules / facilities & also a wider range of Calibration / Test & Measuring Instrument Modules /
Utilities / Accessories available as options, please see Annexure 1 & 2.
4
Nagman
System 5000 Modular Calibration System for Electrical & Electronic Instruments
(“the ultimate Electronic Workstation”)
Applications
• Calibration & Testing of Electrical & Electronic Instruments & Equipments including
- Power & Energy Meters; mV / mA / Ohm / Frequency Meters / Devices; TC /
RTD Indicators / Devices; Electronic Circuits Testing
Standard Features include *
v Power Analyser
Single Phase / Three Phase Voltage Range: 0.3V…1000V
Current Range: 15mA…30A Frequency: DC, 0.1Hz…300kHz
Basic Accuracy: 0.2% Built-in Shunts
Enhanced Accuracy: Energy Meas: Wh, VAh, VARh, Ah
(V) -0.1% of Reading+0.1% Range, (A) – 0.05% of Reading + 0.05% Range; Power – 0.15% Reading + 0.15% Range
v Very High Precision Multifunction Calibrator (Accuracy: 0.01% reading) See Code 1.02
- Temperature / Electrical Calibration Module
5
Nagman
Applications
• Ideal for Bulk / Simultaneous checking & Calibration of Temperature Devices including
v Cryostatic Bath
v Fluidized Bath
v Transmitter DC Power Supplies: 24 V / 300 mA – for powering Transmitters See Code 1.04
Supply: 230 V ±10%. Output: 230V ±1.5% / 3 KVA / 110V ±1.5%/1 Amps
System can be upgraded to a Computer Aided Semi-Automatic / Automatic Calibration System using See Code 1.13
* Nagman’s CALMAN Calibration Management Software.
v Workstation Furniture
* For detailed specifications on above modules / facilities & also a wider range of Calibration / Test & Measuring Instrument
Modules / Utilities / Accessories available as options, please see Annexure 1 & 2.
6
Nagman
v 2 or 3 Microprocessor based High Accuracy Dry Block Temperature Calibrators, mounted ready for use.
The Temperature / Pressure Calibrators / Multifunction Calibrator / Digital Multimeter are all See Code 1.13
* integrated with the powerful CALMAN Calibration Management Software of Nagman to enable
perform automatic / semi-automatic / manual calibration & generation of Certificates per ISO
Standards.
7
Nagman
This device helps to add on upto 8 serial RS232 interface ports on a PC with a unique address for each port. The addition of
this device helps to connect the instruments with serial RS 232 interface permanently onto the computer without having to
connect / dis-connect to establish communication.
* For detailed specifications on above modules / facilities & also a wider range of Calibration / Test & Measuring Instrument
Modules / Utilities / Accessories available as options, please see Annexure 1 & 2.
• Ranges : -1 to 2 bar, -0.1 to 100 mbar, -0.5 to 500 mbar, -0.95 to 1 bar,
-1 to 20 bar, 0 to 35 bar / 70 bar / 150 bar / 350 bar / 700 bar
• Accuracy : 0.05% FS (0.025% FS - special model)
• Two lines graphic Display / 6 Digit Pressure measurement
• V & mA (active and passive loop) In/Out
•
2 2
Selectable Pressure units: Bar, Mpa, kPa, lb/in , Kg/cm , atm, in H2O, m H2O, mm H2O,
in Hg, mm Hg, unit1, unit2 (user defined)
• Rechargeable Batteries / Internal Data Memory; RS232 Serial Interface
Voltage input 0 to 24 V DC scalable
Current input Scalable 0- 20 mA active and passive current loop
Current output Scalable 0/20 mA and 4/20 mA active and passive current loop (transmitter function)
Pressure connection ¼ ” BSP male ‘quick-fit’(pneumatic) / 3/8” BSP female ‘quick-fit’ (hydraulic)
8
Nagman
Code Modules
• Output Sockets 230 VAC ±1.5%, 50 Hz, 3 KVA / 110V ±1.5% / 1 Amps
• Separate MCB’s for each section and earth leakage circuit breakers provided as per
safety regulations.
Ranges :
Vacuum pump: -0.85 bar to 0 bar. Pressure pump: 0 to 20 bar
Compound pump (Vacuum & Pressure) : -0.85 bar to 20 bar
9
Nagman
Code Modules
0.2Hz…20MHz, 8 Ranges / 5 digit LED Sine, Square, Triangle, ±Pulse, ±Ramp / TTL & CMOS Output
Frequency Counter 30MHz / AM & FM Modulation Burst Operation
Auto identification mode identifies unmarked / house – coded devices listing possible replacements
Conditional / unconditional loop testing mode
Functional test unit emulates passive circuitry to implement a comprehensive test in a variety of configurations and gain
setting
Displays diagnostic information down to individual component pins
40 Pin capability (NAND gates to cpus) Identifies unmarked and house-coded devices.
Detects intermittent & temperature related faults Displays diagnostic information for individual pins
Measures: Absolute Impedance, Capacitance, Inductance, Dissipation Factor, Quality Factor, Phase Angle
Test Frequency (selectable): 100Hz…100kHz Basic Accuracy: 0.2%
DC Resistance Measurement
10
Nagman
Code Modules
2.1.09 Oscilloscope
2.3 UTILITIES
Triple Output
Max Output Power : 70 Watts Output Range 0…+30V(0…+1A)/0…-30V(0…-1A)
Voltage Accuracy : ±0.2% reading + 2digits 0…±30V Dual Tracking (0…±1A)
Fixed 5V (2A)
1 KVA ring core Electronic Alteration for cutting down starting current
2 pole Circuit Breaker 4A Voltage : 230 VAC / 115 VAC
Unearthed socket
Micro controller based with digital display of set & actual temperatures and set & actual air volume for hot air pencil
175 watts power consumption
Powerful vacuum pump with 30% more efficiency
High wattage desoldering set of 80 W
Built-in sources for hot air, to attach hot air pencil. & built-in manometer to indicate vacuum level
Temperature control range: 50 to 550°C for hot air pencil set
150 to 450°C for de soldering & soldering sets
2.3.05 SMD Pre-heater - With a heating surface of 85 mm x 55 mm, pre-heats IC boards prior to micro rework
2.3.06 Fixed DC Power Supply ±5 V / 12 V / 15 V / 24 V / 48 V - Fixed DC voltage supply with 1A / 2A / 3A fixed current ratings
2.3.07 ESD Accessories - Wristband, ESD mat, junction boxes and grounding wires.
Quick disconnect connectors / couplings 63 mm/3" Dial air supply / output pressure gauges.
Pneumatic circuit with pressure regulator
11
Nagman
Code Modules
Power rating 1 Watt per resistor Special multiple fold contact for low contact resistance
High Accuracy, low temperature co-efficient Clear visual indication with color coded digits
0.01Ω …1 MΩ, steps 0.01Ω
Caltemp is a dedicated simple & cost effective Temperature Calibration software which enables & supports automatic/semi-
automatic calibration thro’ Nagman Dry Block Calibrators, Micro Oil Bath & Fluidized / Hot Cold Baths.
This Windows 95/98 platform based software offers an easy method for calibrating, datalogging and managing your
calibration data.
Calibration procedures and results are stored in a built-in identification / Tag No. database. Common procedures are easily
found and results are presented in a true certificate format complying with quality standards such as ISO 9000.
An array of Nagman’s
Calibration Test Benches/Workstations/Bench-tops
12 Nov. 2k3
