Vordruckregler, Federbelastet: Für Dämpfe, Gase Und Flüssigkeiten

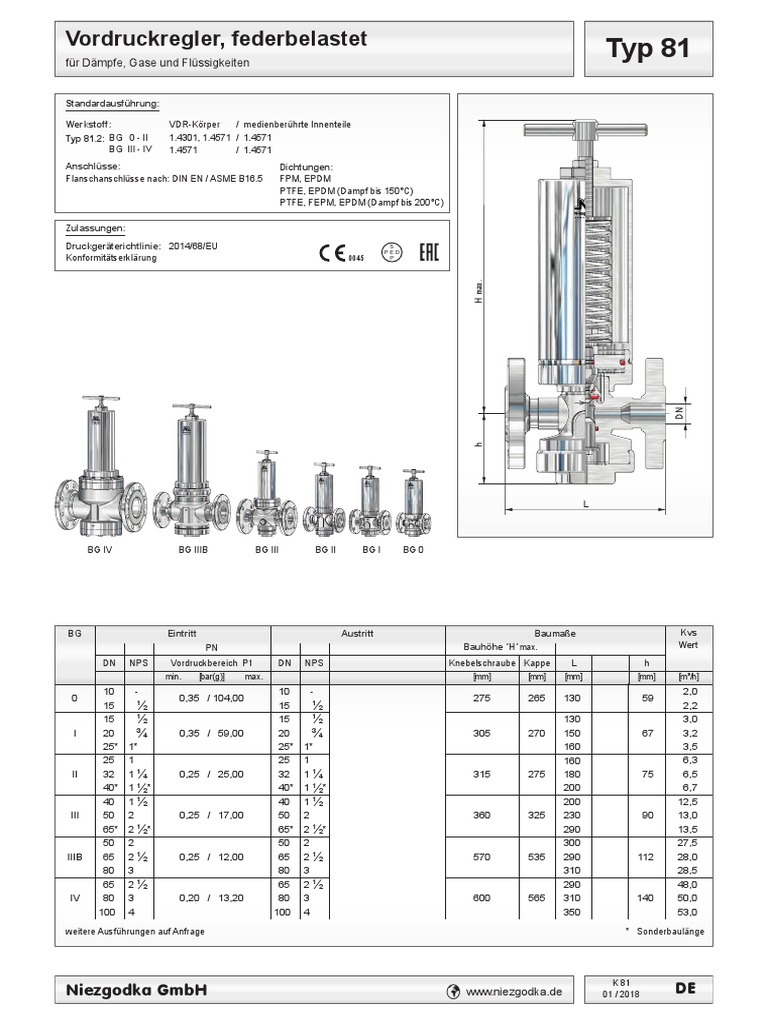

Vordruckregler, federbelastet
für Dämpfe, Gase und Flüssigkeiten

Typ 81
Standardausführung:
Werkstoff: VDR-Körper / medienberührte Innenteile

Typ 81.2: BG 0 - II 1.4301, 1.4571 / 1.4571
BG III - IV 1.4571 / 1.4571
Anschlüsse: Dichtungen:
Flanschanschlüsse nach: DIN EN / ASME B16.5 FPM, EPDM
PTFE, EPDM (Dampf bis 150°C)
PTFE, FEPM, EPDM (Dampf bis 200°C)
Zulassungen:
Druckgeräterichtlinie: 2014/68/EU S
PED
Konformitätserklärung 0045 P
H max.
DN
h
BG IV BG IIIB BG III BG II BG I BG 0
BG Eintritt Austritt Baumaße Kvs

PN Bauhöhe ´H´ max. Wert
DN NPS Vordruckbereich P1 DN NPS Knebelschraube Kappe L h
min. [bar(g)] max. [mm] [mm] [mm] [mm] [m³/h]
10 - 10 - 2,0
0 0,35 / 104,00 275 265 130 59
15 ½ 15 ½ 2,2
15 ½ 15 ½ 130 3,0
I 20 ¾ 0,35 / 59,00 20 ¾ 305 270 150 67 3,2
25* 1* 25* 1* 160 3,5
25 1 25 1 160 6,3
II 32 1¼ 0,25 / 25,00 32 1¼ 315 275 180 75 6,5
40* 1 ½* 40* 1 ½* 200 6,7
40 1½ 40 1½ 200 12,5
III 50 2 0,25 / 17,00 50 2 360 325 230 90 13,0
65* 2 ½* 65* 2 ½* 290 13,5
50 2 50 2 300 27,5
IIIB 65 2½ 0,25 / 12,00 65 2½ 570 535 290 112 28,0
80 3 80 3 310 28,5
65 2½ 65 2½ 290 48,0
IV 80 3 0,20 / 13,20 80 3 600 565 310 140 50,0
100 4 100 4 350 53,0
weitere Ausführungen auf Anfrage * Sonderbaulänge
K 81
Niezgodka GmbH  www.niezgodka.de 01 / 2018 DE
Typ 81
Einstellbereiche des Vordruckes P1
Kolbenplatte [mm] Ø 139 Ø 119 Ø 99 Ø 84 Ø 64 Ø 48 Ø 38 Ø 27

Baugröße Feder-Nr. [bar(g)]
303 0,35 - 0,70

304 0,71 - 1,20
305 1,30 - 2,00
306 2,10 - 3,00 4,60 - 6,00 9,10 - 10,00 15,10 - 26,00
0 307 3,10 - 4,50 6,10 - 9,00 10,10 - 15,00 26,10 - 39,00
308 39,10 - 48,00
309 48,10 - 62,00
310 62,10 - 85,00
311 85,10 -104,00
303 0,35 - 0,70

304 0,71 - 1,00
305 1,10 - 2,00
I 306 2,10 - 3,00 4,60 - 6,00 8,60 - 10,00 15,10 - 25,00
307 3,10 - 4,50 6,10 - 8,50 10,10 - 15,00 25,10 - 38,00
308 38,10 - 46,00
309 46,10 - 59,00
303 0,25 - 0,40

304 0,41 - 0,70
305 0,71 - 1,00
II 306 1,10 - 1,60 2,60 - 3,00 4,60 - 7,00 10,10 - 14,00
307 1,70 - 2,50 3,10 - 4,50 7,10 - 10,00 14,10 - 21,00
308 21,10 - 25,00
323 0,25 - 0,40

324 0,41 - 0,70
III 325 0,71 - 1,00 1,10 - 1,50 2,60 - 3,50 6,60 - 11,00
326 1,60 - 2,50 3,60 - 5,50 11,10 - 17,00
327 5,60 - 6,50
353 0,25 - 0,50

354 0,51 - 0,90
355 1,00 - 1,30
IIIB 356 1,40 - 2,00 2,10 - 3,00
357 3,10 - 5,50 5,60 - 9,00
358 9,10 - 12,00
353 0,20 - 0,43

354 0,44 - 0,70
IV 355 0,71 - 1,00
356 1,10 - 1,50 2,60 - 4,10
357 1,60 - 2,50 4,20 - 6,80 6,90 - 13,20
VDT 81
Typ 81
120
085
085
086
082
081
Schutzkappe 030
(Option: AC)
314
084
311
352*
310
304
350*
329*
362
060*
302
079
351* 347
300 BG 0 357
Pos. Stück Bezeichnung Pos. Stück Bezeichnung
302 1 VDR-Körper 120 1 Kappe

030 1 Federhaube 300 1 Kolben
060 * 1 Kegel komplett 304 1 Vordruckkolben
560 1 Kegel 310 1 Kolbenplatte
061 1 Druckstück 311 1 Distanzstück
062 1 Kegeldichtung 314 1 Gegenmutter
071 1 O-Ring 329 * 1 O-Ring
072 1 Klemmscheibe 347 1 Schraube
073 1 O-Ring (nur bei Thermoplast-Kegeldichtung) 350 * 1 O-Ring
079 1 Hubbegrenzung 351 * 1 O-Ring
081 1 Feder 352 * 1 O-Ring
082 1 Federteller, oben 357 1 Verschlusskappe
084 1 Federteller, unten 362 1 Adapter
085 1 Druckschraube
086 1 Gegenmutter * Verschleißteile
M 81-BG0
Certification Required: ATEX
Fluid Section Material: [S] Stainless Steel
Pump Inlet/Outlet Size: 1050e - 1 Inch, 40 gpm (25mm, 151 lpm)
Center Section Material: [S] Stainless Steel
Pump Speed: [0] High Speed
Compressor: [4] No Compressor
Motor: [F] IEC 90 Gearbox
Porting: [S1] SST Standard Porting (NPT)
Seats: [SS] 316 SST
Balls: [PT] PTFE
Diaphragms: [PTS] PTFE/Santoprene Two-Piece
Manifold O-Rings: [PT] PTFE
Graco Part Number: 653034
Configuration Number: 1050S-S04FS1SSPTPTSPT
Repair Kits
24B637 - Kit, 1050e Seat, 316 SST
24B645 - Kit, 1050e Ball, PTFE
24F926 - Kit, 1050e Diaphragm, PTFE/Santoprene Two-Piece
24Y526 - Kit, 1050e Electric Center Replacement Kit
24Y624 - Kit, 1050e Electric Center Section Repair Kit
24Y524 - Kit, 1050e Main Shaft Repair Kit

Optional Accessories
Leak Sensor
Leak sensor kit for Husky 1050e pumps 24Y661
VFD (Variable Frequency Drive)

2 Horsepower 208-240 VAC Single or Three Phase Input Power 16K911
2 Horsepower 400-480 VAC Three Phase Input Power 16K912
Integrated Compressor Kit

1050e Compressor Box Kit (240V) 24Y541
1050e Compressor Box Kit (120V) 24Y542
Cart
Cart kit for Husky 1050e 24Y543
Motor
2 Horsepower Explosion Proof Class 1 Division 1 Motor 17F745
2 Horsepower ATEX Hazardous Location Motor 17F734
Tools
Bearing Puller Tool 17J334
Bushing Installation Tool 24Y627
Flange Kits
Polypropylene 1" ANSI x 1" npt(f) 239005
Stainless Steel 1" ANSI x 1" npt(f) 239008
PVDF 1" ANSI x 1" npt(f) 239009
PTFE/EPDM Overmolded Diaphragms

Overmolded PTFE Upgrade Kit Husky 1050 24B626
Dual Inlet Manifold

Husky 1050 - Aluminum Only 24D205
Performance Chart
H250 M8 Technical Datasheet
Variable area flowmeter

• Secure, cost-effective measurement and display, even without power supply
• Compact indicator for space-saving installation
• Many connection variants: flanged, screwed, clamped, weld-on ends
© KROHNE 12/2017 - 4006398701 - TD H250-M8 R01 en

CONTENTS H250 M8
1 Product features 3
1.1 The standard solution for the process industry............................................................... 3

1.2 Options and variants......................................................................................................... 4
1.3 Functional principle.......................................................................................................... 5
2 Technical data 6
2.1 Technical data................................................................................................................... 6

2.2 Dimensions and weight .................................................................................................. 10
2.3 Measuring ranges........................................................................................................... 12
3 Installation 14
3.1 Intended use ................................................................................................................... 14

3.2 Installation conditions .................................................................................................... 15
3.2.1 Magnetic filters ..................................................................................................................... 17
4 Electrical connections 18
4.1 Electrical connection procedure .................................................................................... 18

4.1.1 Indicator M8M - limit switches ............................................................................................. 18
4.1.2 Indicator M8E - current output ............................................................................................. 18
5 Order form 21
6 Notes 22
2 www.krohne.com 12/2017 - 4006398701 - TD H250-M8 R01 en

H250 M8 PRODUCT FEATURES 1
1.1 The standard solution for the process industry

The all-metal variable area flowmeter H250 is used for flow measurement of conductive and
non-conductive liquids and gases.
Highlights
• Simple, low-cost installation: Measurement and indication without auxiliary power supply
• Very compact indicator housing for space-saving installation
• Optional limit switch for flow monitoring or continuous 4...20 mA measuring signal
• Many connection variants: flanged, screwed, clamped, weld-on ends
• Choice of material: stainless steel, Hastelloy®, titanium, Monel, Inconel
• High application safety, even with extremely low flows
• Intrinsically safe for use in hazardous areas
Industries
Can be used in all industrial sectors, for example:
• Chemical
• Petrochemical
• Pharmaceuticals
• Machinery
• Food & Beverage
• Oil & Gas
• Iron, Steel & Metal
• Power plants
• Paper & Pulp
• Water & wastewater industries
Applications:
• Nitrogen inerting to avoid explosive atmospheres
• Measurement of additives such as catalysts, tensides, anti-foaming and anti-corrosion
agents
• Measurement of chlorine, sulphur and ethylene compounds
• Measurement of distilled or demineralised water
• Monitoring of lubricating and cooling agents for process pumps and rotating machines
• Monitoring of sealing systems on compressors
• Gas measurement for industrial furnaces
12/2017 - 4006398701 - TD H250-M8 R01 en www.krohne.com 3

1 PRODUCT FEATURES H250 M8
1.2 Options and variants

Indicator M8 (compact)
• Compact, space-saving design
M8M
• Mechanical indicator without auxiliary power
• 2 limit switches (NAMUR)
M8E
• Electronic bargraph indicator
• 2-wire current output 4…20 mA with HART®
For particularly rough environmental conditions, the M8

indicator housing is optionally available in stainless
steel.
This guarantees its reliable use in corrosive
atmospheres caused by operational emmissions.
When installed outdoors, external influences such as

salt fog or contaminated precipitation no longer lead to
corrosion.

H250 M8 PRODUCT FEATURES 1
1.3 Functional principle

The flowmeter operates in accordance with the float measuring principle. The measuring unit
consists of a metal cone in which a float can move freely up and down. The medium flows
through the flowmeter from bottom to top. The float changes position so that the lifting force
acting on it A is in equilibrium with the form drag W and its weight G: G = A + W.
Figure 1-1: Functional principle

1 Indication principle M8MG
2 Indication principle M8EG
For the indicator M8MG 1 the flow-dependent height of the float in the measuring unit is
transmitted by means of a magnetic coupling and displayed on a scale. For the indicator M8EG 2
the flow-dependent height of the float in the measuring unit is transmitted to the electronic
display by means of a magnetic coupling on sensors S1 and S2.

2 TECHNICAL DATA H250 M8
2.1 Technical data

• The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local sales office.
• Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Downloadcenter).
Measuring system
Scope of application Flow measurement of liquids and gases
Function / Measuring principle Float measuring principle
Measured value
Primary measured value Float position
Secondary measured value Operating and standard volume flow
Measuring accuracy
Directive VDI/VDE 3513, sheet 2 (qG = 50%)
H250/RR & H250/HC 1.6%
Operating conditions
Temperature
Max. operating temperature TS -196...+200°C / -321...+392°F
Pressure
Max. operating pressure PS Depending on the version up to 400 barg / 5802 psig
Max. test pressure PT Depending on the version (refer to nameplate)
Min. required operating pressure 2 times greater than pressure loss (refer to measuring
ranges)
Float damping during gas measurement recommended
DN15...25 / 1/2...1" Operating pressure <0.3 barg / 4.4 psig
Ingress protection
Indicator in PPS IP66
Indicator in stainless steel IP66 / IP67
Installation conditions
Inlet section ≥ 5 x DN
Outlet section ≥ 3 x DN

H250 M8 TECHNICAL DATA 2
Materials
H250/RR
Flange, measuring tube, float and float guide Stainless steel CrNi 1.4404 / 316L
H250/HC
Flange Hastelloy® C4 / 2.4610 solid or plated
Measuring tube, float and float guide Hastelloy® C4
Indicator
M8MG, M8EG PPS
M8MG/R, M8EG/R Stainless steel 1.4408/CF8M
Other options:
• Special materials on request: e.g. SMO 254, titanium, 1.4435
• Gasket for devices with female thread as insert: O-ring FPM/FKM

Temperatures
For devices to be used in hazardous areas, special temperature ranges apply. These can be
found in the supplementary instructions.
Temperatures
[°C] [°F]
M8M
Product temperature Tm without limit switches -80...+200 -112…+392
Product temperature Tm with limit switches -40…+200 -40…+392
Ambient temperature Tamb. -40…+70 -40…+158
M8E
Product temperature Tm at Tamb. +40°C / +104°F -40...+200 -40…+392
Ambient temperature Tamb. -40…+70 -40…+158
M8M limit switches

Terminal connection 2.5 mm2
Limit switches I7S2002-N SJ2-SN
SC2-N0
Type 2-wire NAMUR 2-wire NAMUR 1
Switching element function Normally closed Normally closed
Nominal voltage U0 8 VDC 8 VDC
Pointer vane not detected ≥ 3 mA ≥ 3 mA
Pointer vane detected ≤ 1 mA ≤ 1 mA
1 Safety-oriented

M8E current output

Cable gland M16 x 1.5
Cable diameter 8…10 mm / 0.315...0.394
Terminal connection 4 mm2
Measuring signal 4...20 mA = 0…100% flow value in 2-wire technology
Power supply 14.8...30 VDC
Min. power supply for HART® 20.5 VDC
Power supply influence <0.1%
External resistance dependency <0.1%
Temperature influence <10 µA/K
Max. external resistance / load 650 Ω at 30 VDC
Min. load for HART® 250 Ω
Software firmware version 01.15
Identification number 3204090400
M8E HART® configuration

Manufacturer name (code) KROHNE Messtechnik (0x45 = 69)
Model name M8E (230)
HART® revision 5.1
Device revision 1
Physical Layer FSK
Device category Transmitter
M8E process variable

M8E process variable, flow rate Values [%] Signal output [mA]
Upper range limit +102.5 (±1%) 20.24...20.56
Device error detection >106.25 ≥21.00
Maximum 112.5 22
Multi-Drop operation - 4.5
Min. Uext. 14.8 VDC
Approvals
Standard Indicator Marking
ATEX / IECEx M8 mechanical II2G Ex h IIC T6...T3 Gb
II2D Ex h IIIC T200°C Db
M8 electrical II2G Ex ia IIC T6...T3 Gb
II2D Ex ia IIIC T75°C...T200°C Db (M8xG/R)
QPS M8 IS/I/1/ABCD/T6
I/AEx ia/IIC/T6

2.2 Dimensions and weight

Dimensions
Front view Side view
Dimensions M8M Dimensions M8E
f g h f g h
EN ASME [mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
DN15 1/2" 63 2.48 60 2.36 58.5 2.30 53.5 2.11 66 2.60 52.5 2.07
DN25 1" 75 2.95 60 2.36 58.5 2.30 65.5 2.58 66 2.60 52.5 2.07
Overall height
[mm] ["]
Flange 250 9.85
ISO 228 / ASME B1.20.1 300 11.82
Weights
Nominal size Indicator in PPS Indicator in stainless steel
EN ASME [kg] [lb] [kg] [lb]

DN15 1/2" 3.5 7.7 4.8 10.6
DN25 1" 5 11 6.3 13.9

Process connections
Standard Conn. dim. Pressure rating
Flanges (H250/RR & H250/HC) EN 1092-1 DN15...50 PN16...250
ASME B16.5 1/2...3" 150...2500 lb
Clamp connections (H250/RR) DIN 32676 DN25...40 10...16 bar
ISO 2852 NS 25...40 10...16 bar
Screw connections (H250/RR & DIN 11851 DN25...40 25...40 bar
H250/HC)
SMS 1146 1" 6 barg / 88.2 psig
Female thread welded ISO 228 G1/2...2 ≥ 50 barg / 735 psig
(H250/RR & H250/HC)
ASME B1.20.1 1/2…2 NPT
Female thread (H250/RR & ISO 228 G1/2…2 ≤ 50 barg / 735 psig
H250/HC) with insert, FPM
gasket and union nut ASME B1.20.1 1/2…2 NPT
Higher pressure ratings and other connections on request.

2.3 Measuring ranges

H250/RR - stainless steel, H250/HC - Hastelloy®
Measuring span: 10 : 1
Flow values: Values = 100% Water: +20°C / +68°F Air: +20°C / +68°F, 1.013 bara / 14.7 psia
Water Air Max. pressure loss
Float TIV CIV DIV TIV TIV DIV TIV TIV CIV DIV
Alu. Alu.
Nominal Cone [l/h] [Nm3/h] [mbar]

size
DN15, 1/2" K 15.1 18 25 - 0.42 0.65 - 12 21 26 -
K 15.2 30 40 - 0.7 1 - 12 21 26 -
K 15.3 55 63 - 1 1.5 - 12 21 26 -
K 15.4 80 100 - 1.7 2.2 - 12 21 26 -
K 15.5 120 160 - 2.5 3.6 - 12 21 26 -
K 15.6 200 250 - 4.2 5.5 - 12 21 26 -
K 15.7 350 400 700 6.7 10 18 1 12 21 28 38
K 15.8 500 630 1000 10 14 28 1 13 22 32 50
K 15.8 - - 1600 2 - - 50 2 - - - 85
DN25, 1" K 25.1 480 630 1000 9.5 14 - 11 24 32 72
K 25.2 820 1000 1600 15 23 - 11 24 33 74
K 25.3 1200 1600 2500 22 35 - 11 25 34 75
K 25.4 1700 2500 4000 37 50 110 1 12 26 38 78
K 25.5 3200 4000 6300 62 95 180 1 13 30 45 103 3
1 P >0.5 bar
2 with TR float
3 300 mbar with damping (gas measurement)
The operating pressure should be at least double the pressure loss for liquids and five times for
gases. The indicated pressure losses are valid for water and air at maximum flow rate. Other
flow ranges on request. Conversion of other media or operating data is performed using the
calculation method in accordance with VDI/VDE directive 3513.
Reference condition for gas measurements:

Flow measurements for gases are attributed to Nl/h or Nm3/h:
Volume flow at standard (norm.) conditions 0°C - 1.013 bara (DIN 1343)

H250/RR - stainless steel, H250/HC - Hastelloy®

Measuring span: 10 : 1
Flow values: Values = 100% Water: +20°C / +68°F Air: +20°C / +68°F, 1.013 bara / 14.7 psia
Water Air Max. pressure loss
Float TIV CIV DIV TIV TIV DIV TIV TIV CIV DIV
Alu. Alu.
Nominal Cone [GPH] [SCFM] [psig]

size
DN15, 1/2" K 15.1 4.76 6.60 - 0.26 0.40 - 0.18 0.31 0.38 -
K 15.2 7.93 10.6 - 0.43 0.62 - 0.18 0.31 0.38 -
K 15.3 14.5 16.6 - 0.62 0.93 - 0.18 0.31 0.38 -
K 15.4 21.1 26.4 - 1.05 1.36 - 0.18 0.31 0.38 -
K 15.5 31.7 42.3 - 1.55 2.23 - 0.18 0.31 0.38 -
K 15.6 52.8 66.0 - 2.60 3.41 - 0.18 0.31 0.38 -
K 15.7 92.5 106 185 4.15 6.20 11.2 1 0.18 0.31 0.41 0.56
K 15.8 132 166 264 6.20 8.68 17.4 1 0.19 0.32 0.47 0.74
K 15.8 - - 423 2 - - 31.0 2 - - - 1.25
DN25, 1" K 25.1 127 166 264 5.89 8.68 - 0.16 0.35 0.47 1.06
K 25.2 217 264 423 9.30 14.3 - 0.16 0.35 0.49 1.09
K 25.3 317 423 660 13.6 21.7 - 0.16 0.37 0.50 1.10
K 25.4 449 660 1057 22.9 31.0 68.2 1 0.18 0.38 0.56 1.15
K 25.5 845 1057 1664 38.4 58.9 111 1 0.19 0.44 0.66 1.51 3
1 P >7.4 psig
2 with TR float
3 4.4 psig with damping (gas measurement)
The operating pressure should be at least double the pressure loss for liquids and five times for
gases. The indicated pressure losses are valid for water and air at maximum flow rate. Other
flow ranges on request. Conversion of other media or operating data is performed using the
calculation method in accordance with VDI/VDE directive 3513.
Reference condition for gas measurements:

Flow measurements for gases are attributed to SCFM or SCFH:
Volume flow at standard (std.) conditions 15°C - 1.013 bara (ISO 13443)

3 INSTALLATION H250 M8
3.1 Intended use

Responsibility for the use of the measuring devices with regard to suitability, intended use and
corrosion resistance of the used materials against the measured fluid lies solely with the
operator.
This device is a Group 1, Class A device as specified within CISPR11:2009. It is intended for use in
industrial environment. There may be potential difficulties in ensuring electromagnetic
compatibility in other environments, due to conducted as well as radiated disturbances.
The manufacturer is not liable for any damage resulting from improper use or use for other than
the intended purpose.
The variable area flowmeters are suitable for measuring clean gases, vapours and liquids.
Intended use:
• The product may not contain any ferromagnetic particles or solids. It may be necessary to
install magnetic filters or mechanical filters.
• The product must be sufficiently liquid and free of deposits.
• Avoid pressure surges and pulsing flows.
• Open valves slowly. Do not use solenoid valves.
Use suitable measures to eliminate compression vibrations during gas

measurements:
• Short pipeline lengths to next restriction
• Nominal pipe size not greater than nominal device size
• Use of floats with damping
• Increase in operating pressure (while taking into account the resulting change in density and
thus change in scale)
Observe installation conditions according to VDI/VDE 3513-3.
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
Do not use any abrasive media containing solid particles or highly viscous media.

H250 M8 INSTALLATION 3
3.2 Installation conditions

When installing the device in the piping, the following points must be observed:
• The variable area flowmeter must be installed vertically (measuring principle). Flow direction
from bottom to top. For installation recommendations please refer also to directive
VDI/VDE 3513, sheet 3.
• A straight unimpeded inlet run of ≥ 5 DN upstream of the device and a straight outlet run of
≥ 3 DN downstream of the device are recommended.
• Screws, bolts and gaskets are to be provided by the customer and must be selected in
accordance with the pressure rating of the connection or the operating pressure.
• The inside diameter of the flange deviates from the standard dimensions.
• Align the gaskets. Tighten the nuts with the tightening torques of the appropriate pressure
rating.
• Control devices are to be positioned downstream of the measuring device.
• Shutoff devices are preferably to be positioned upstream of the measuring device.
• Before connecting, blow or flush out the pipes leading to the device.
• Pipes for gas flow need to be dried before the device is installed.
• Use connectors suitable for the particular device version.
• Align the pipes centrically with the connection bores on the measuring device so they are free
of stresses.
• If necessary, the piping has to be supported to reduce the vibrations transmitted to the
measuring device.
• Do not lay signal cables directly next to cables for the power supply.
• The device must not be heated by radiated heat (e.g. exposure to the sun) to an electronics
housing surface temperature above the maximum permissible ambient temperature. If it is
necessary to prevent damage from heat sources, a heat protection (e.g. sun shade) has to be
installed.

3 INSTALLATION H250 M8
Figure 3-1: Minimum distance between devices (H250/M8MG)

1 180 mm / 7.1"
2 100 mm / 3.9"
3 130 mm / 5.1"
Figure 3-2: Minimum distance between devices (H250/M8EG)

1 250 mm / 9.8"
2 160 mm / 6.3"
3 130 mm / 5.1"

H250 M8 INSTALLATION 3
3.2.1 Magnetic filters

The use of magnetic filters is recommended when the medium contains particles which can be
influenced magnetically. The magnetic filter is to be installed in the flow direction upstream of
the flowmeter. Bar magnets are positioned helically in the filter to provide optimal efficiency at
low pressure loss. All of the magnets are coated individually with PTFE to protect against
corrosion. Material: 1.4404 / 316L
Figure 3-3: Types of magnetic filters

1 Type F - fitting part with flange - overall length 100 mm / 4"
2 Type FS - fitting part without flange - overall length 50 mm / 2"

4 ELECTRICAL CONNECTIONS H250 M8
4.1 Electrical connection procedure

For the electrical data of the used components refer to Technical data on page 6.
4.1.1 Indicator M8M - limit switches

The limit switches can be set over the entire measuring range using the maximum pointer 1.
The set limit values are displayed on the scale. The pointers are set to the desired limit values
using a slip coupling along the scale.
Figure 4-1: Limit switch settings M8MG

1 Maximum pointer, switching point indicator
2 Limit switches
3 Connection board
4 Connection terminal
4.1.2 Indicator M8E - current output
Figure 4-2: Electrical connection M8EG

1 Terminal connection
2 Power supply 14.8...30 VDC
3 Measuring signal 4...20 mA
4 External load, HART® communication

H250 M8 ELECTRICAL CONNECTIONS 4
Power supply M8 with galvanic isolation
Wiring must be planned with great care when it comes to connecting other devices such as
evaluation units or process control. Internal connections in these devices (e.g. GND with PE,
mass loops) may lead to non-permitted voltage potentials which could negatively affect the
function of the converter itself or that of a device connected to it. In such cases a protected extra-
low voltage (PELV) is recommended.
Figure 4-3: Electrical connection M8EG with electrical isolation

1 Terminal connection
2 Converter supply isolator with electrical isolation
3 Power supply (see supply isolator information)
4 Measuring signal 4...20 mA
5 External load, HART® communication
Power supply
The supply voltage has to be between 14.8 VDC and 30 VDC. This is based on the total resistance
of the measuring loop. To calculate this, the resistance of each component in the measuring loop
(not including the device) must be added together.
The required supply voltage can be calculated using the formula below:
Uext. = RL * 22 mA + 14.8 V
with
Uext. = minimum supply voltage
RL = total measuring loop resistance
The power supply has to be able to supply a minimum of 22 mA.

4 ELECTRICAL CONNECTIONS H250 M8
HART® communication
When HART® communication is carried out with the M8E indicator, the analogue measured data
transmission (4...20 mA) is not impaired in any way.
Exception for multidrop operation. In multidrop operation a maximum of 15 devices with HART®
function can be operated in parallel, whereby their current outputs are switched to inactive
(I approx. 4 mA per device).
Load for HART® communication

For HART® communication a load of at least 230 Ω is required.
The maximum load resistance is calculated as follows:
Use a twisted two-core cable to prevent electrical interference from impeding the DC output
signal.
In some cases a shielded cable may be necessary. The cable shield may only be grounded
(common ground connection) at one point (on the power supply unit).
Configuration
The M8E electronic indicator can be configured via HART® communication. DD (Device
Descriptions) for AMS 6.x and PDM 5.2 as well as a DTM (Device Type Manager) are available for
configuration. They can be downloaded free of charge from the website of the manufacturer.
The current flow rate can be transmitted using the integrated HART® communication.
A flow counter can be configured. Two limit values can be set and monitored. The limit values
are assigned either to flow values or to the counter overflow. The limit values are not depicted on
the display.

H250 M8 ORDER FORM 5
Please provide us with the missing information so that we can be of help to you as quickly as
possible.
Then please fax this page to the appropriate sales associate. We will then contact you as soon as
possible.
Device data
Connection type:
Nominal connection size:
Pressure rating:
Raised face:
Material of pipeline:
Indicator: _ M8MG _ M8EG
Indicator options: _ K1 1
_ K2 2
Approval: _ None _ ATEX / IECEx _ QPS
1 1 limit switch
2 2 limit switches
Design data
Medium:
Operating pressure: _ Absolute _ Gauge pressure
pressure
Rated pressure:
Operating temperature:
Rated temperature:
Density: _ Standard density _ Operating density
Viscosity:
Flow range:
Comments:
Contact data
Company:
Contact person:
Telephone number:
Fax number:
E-mail:

KROHNE Messtechnik
Float-/Cone-Calculation
03/04/2023
Please refer to your local KROHNE sales representative, or:

PSC - LF1, KROHNE Messtechnik
Ludwig-Krohne-Str. 5
47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Email: psc.kmt@krohne.com
Physical data
Substance : Oxygen scavanger
Density : 1200.0 kg/m³
Viscosity : 25.0 mPa.s
Temperature : 25.0 °C
Pressure : 5.0 bar gauge
Flowtype : Volumeflow L/min

Q-Max value : 0.220833318
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 200
Float shape : N2
Float material : Stainless steel
Calculated flowrange : 0.0220833318 ... 0.220833318 L/min ( )
Pressure drop : 29.0 mbar
KroVaSel 4.0.0.2094 KroVaCal32-Kernmodul 4.1.4.2093 KVC-Datenbank 1.3.4.7 Messstoff-Datenbank 0.0.6.6
Customer / Tag-No: / Reference:
Injection point 3
Tag-No: Oxygen Scavanger
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : 0.1125

Q-Max value : 0.0201389
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 040
Float shape : N2
Injection point 1
Tag-No: Scale Inhibitor
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : 0.1125

Q-Max value : 0.0333333
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 080
Float shape : N2
Float material : Titanium
Injection point 2
Tag-No: Scale Inhibitor
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : water (H2O)

Q-Max value : 0.0659722
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 015
Float shape : N1
Injection point 1 and 2

Tag-No: Water Clarifier
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Asphaltene Inhibitor

Q-Max value : 0.375
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 340
Float shape : N2
Tag-No: Asphaltene Inhibitor

KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Biocide

Q-Max value : 0.0333333
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 080
Float shape : N2
Injection point 1
Tag-No: Biocide
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Biocide

Q-Max value : 0.0555556
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 125
Float shape : N2
Injection point 2
Tag-No: Biocide
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Biocide

Q-Max value : 0.110417
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 200
Float shape : N2
Injection point 3
Tag-No: Biocide
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Biocide

Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 200
Float shape : N2
Injection point 4
Tag-No: Biocide
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Corrosion inhibitor

Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 200
Float shape : N2
Injection point 1
Tag-No: corrosion inhibitor
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data

Q-Max value : 0.0111111
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 040
Float shape : N2
Injection point 2
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data

Q-Max value : 0.0409722
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 080
Float shape : N2
Injection point 3
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : Demulsifier

Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 080
Float shape : N2
Injection point 1
Tag-No: Demulsifier
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data

Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 010
Float shape : N1
Injection point 2
Tag-No: Demulsifier
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data

Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 080
Float shape : N2
Injection point 3 & 4

Tag-No: Demulsifier
KROHNE Messtechnik
03/04/2023

47058 Duisburg
Tel.: +49(0)203 - 301-0
Fax: +49(0)203 - 301-4391
Physical data
Substance : H2S scavanger

Q-Max value : 0.88
Calculated device
Type : H250 LF
V-No. : V251
Cone size : 15
Cone : K 340
Float shape : N2
Injection point 3
Tag-No: H2S Scavanger
ITEM DESCRIPTION MATERIAL DESIGN CODE ASME VIII (DESIGN ONLY)
1 CHARGING VALVE AISI 316 DESIGN PRESSURE 48BAR G TYPICAL DRAWING
2 RETAINING RING 316 STAINLESS STEEL TEST PRESSURE TO CODE FOR QUOTATION
3 GAS HEADER 316 STAINLESS STEEL PRE-CHARGE PRESSURE 80% OF W.P PURPOSES ONLY
4 OUTER O-RING* VITON DESIGN TEMPERATURE 50°C
5 INNER O-RING* VITON
6 BLADDER* VITON Estimated Weight: 4 Kg
7 BUTTON* 316 STAINLESS TSEEL
8 SHELL 316 STAINLESS STEEL
215mm
Ø66.3 mm
3/4” 300LB ANSI RAISED

FACE, WELD NECK
FLANGE
1 2 3 4 5 6 7 8
NOTES:
1.* DENOTES ITEMS INCLUDED IN SPARES KIT SPARE KIT REF
WATFORD BRIDGE TITLE DRAWN BY DATE
FG-10-48-FPM-SS-E- 3/4" 300 RF/WN

NEW MILLS
HIGH PEAK SK22 4HJ
Tel: +44 (0) 1663 745976
ALAN HAY 04/04/23
CUSTOMER QUOTE NUMBER
FIRST ANGLE
PROJECTION XL GROUP CQ03621 REV 1
Flowguard Pulsation Dampeners
FlowGuard® Pulsation Dampeners
Pulsation Dampeners (aka dampers) are hydro-pneumatic devices
designed to remove pulsations, vibrations and noise caused by
positive displacement pumps in fluid systems.
Using pulsation dampeners on positive displacement pumped

systems will result in improved instrument readings, increased
pump life, lower maintenance costs, and lower running costs. They
eliminating the possibility of pipe fracture caused by vibration and
safeguard personnel from the risk of leaks.
Principles of Operation
FlowGuard pulsation dampeners operate by employing a small
Broad Range to Fit Your Needs
volume of gas, usually nitrogen, contained within a flexible
CoorsTek wide range of FlowGuard pulsation dampers fulfill most
membrane fitted inside a non-corrosive shell. Each time a pulse
pressure requirements (from 150psi (10 bar) to 15,000psi (1,000
comes from the pump, part of the pulse goes into the damper
bar)) and may be custom made to meet any specification or a
and the gas is compressed slightly. As the flow decreases the pulse
particular duty requirement.
stored in the damper will be pushed back into the line. The result
is a smooth flow which will keep pressure fluctuations within the
Certified High Quality
required limits (level of damping).
Designed and manufactured to the highest standards, FlowGuard
pulsation dampeners conform to internationally recognized pressure
Designed Efficiency
vessel codes and may be supplied with full material certification
Superior, uncomplicated, and efficient designs ensure levels
(ASME Coded) if required.
of performance unmatched by traditional adapted hydraulic
accumulators. The basic, yet rugged, construction makes
Alternative Single
them economically priced and easy to maintain. Non-Corrosive Shell Flanged Connection
Exceptionally Durable Flexible Membrane

Our standard housings are made of non-corrosive 316 stainless steel,
polypropylene, or of special alloys like titanium, Hastelloy®, Monel™, Compressible Gas Alternative Inline
Flanged Connection
etc. The membrane is available in 10 different types of rubber or
PTFE (Teflon®) bellows or diaphragm. Liquid Chamber
Inlet/Outlet Port
Benefits & Features

Features of FlowGuard Pulsation Dampeners Benefits of FlowGuard Pulsation Dampeners
• Unrestricted inlet port (no poppet valve) for • Remove pressure fluctuations and surges
improved damping efficiency • Stop vibration & shaking of pipes
• Welded flange connections as well as BSP & NPT threaded • Ensure a continuous, steady flow
• Very simple gas charging system • Reduce noise in problem systems
• One-piece, moulded membranes (no glued joints) • Reduce overload on pump motors and gearboxes
on all standard sizes where there are long pipe runs
• In-line (2 port) available as an option with a choice • Prevent pump overdelivery
of port orientation • Prevent cavitation caused by poor suction
• Easy-to-service membrane can be changed without conditions, long suction lines, etc.
removing damper from the line
• Fully coded and approved welding with 100% x-ray, if required
CoorsTek and FlowGuard are registered trademarks of CoorsTek, Inc.
Americas Europe Japan China Korea

+1 303 271 7100 tel +44 1663 745976 +1 81 3 5437 8411 +86 21 6232 1125 +82 31 613 2946
+1 855 929 7100 toll free in USA flowguard@coorstek.com japaninfo@coorstek.com info_shanghai@coorstek.com koreainfo@coorstek.com
www.coorstek.com
info@coorstek.com © 2017 CoorsTek 01747 H
MODELS-1121, 1122, 1123
All stainless steel construction Safety Pattern Pressure Gauges
APPLICATIONS
Gas and Steam in excess of 25 Bar pressure can represent danger if there is a rupture in
the Bourdon Tube measuring this gas. To minimize the danger, gauges in this applica-
tion should be Safety Pattern type, having solid front between Bourdon tube and dial, Dry, Liquid Fillable or Pre-Filled. VIBRAGAUGE® Option also available.
safety window and blow-out back to allow any blast to release to the rear of gauge. VIBRAGAUGE® for Dampening of vibration & pulsation without liquid filling.
Athough there is not necessarily any great risk in the use of gauges for gases at pressure With liquid-filled case for applications with high dynamic
less than 25 Bar, a blow-out disc should be incorporated and the purchaser should have Pressure pulsations or vibration.
regard to the nature of the gas and the installation conditions and, if necessary,
order a gauge of the Safety Pattern type.
STANDARD SPECIFICATION Model-1122 Direct Mounted
Petro-Chemical Safety Pattern Gauge with Baffle Wall (Weatherproof to IP66)
Sizes
63, 100 and 150 mm
Case/ Bezel
304 Stainless Steel (316 Stainless Steel can be supplied on request)
Socket & Element

316 Stainless Steel
Movement
Stainless Steel Construction
Blowout Protection
S3 Safety Pattern with Baffle Wall and Blow-out Back
Dial
White Anodised Aluminium (Black Printing)
Pointer
Black Aluminium
Window
Laminated Safety Glass
Traceability
All instruments are individually calibrated and have an unique Serial Number.
Certification available on request

• Certificate of Conformity Traceable to National Standards
• Group Certification (Pressure Test Calibration Statement)
• Point to Point Test Certificate
• BS EN 10204 3.1 Material Certification Model-1121 Surface Mounted (Bottom Connection)
Model-1122 Direct Mounted (Bottom Connection)
Safety Model-1122BC Direct Mounted (Rear Connection)
All units are manufactured to comply with EN 837-1, S3 Safety Pattern Model-1123 Flush Mounted Screw Fixing (Rear Connection)
specification and other regulatory standards including PED 97/23/EC. See Page-2 for dimension
Installation instructions Operating Temperature Range EN837
Refer to EN 837-2 and our Guidance On Use of Equipment data sheet. -20° to 60°C (-4°F to 140°F) without loss of accuracy.
Options for lower/Higher operating ranges (Contact Sales)
Accuracy class
Temperature Error
ACCURACY CLASS EN837-1 (Optional) Higher Pressure Additional error when temperature changes from reference
0 - 600 bar >600 - 1600 bar >1600 - 2500 bar Temperature of 20°C (68°F) ±0.4% for every 10°C (18°F) rising or Falling % of span
63mm 1.0 1.6 * N/A Optional Extras

• Micro adjustable pointer /Black finish
100mm 1.0 (0.6) 1.0 1.6 • Optional dial materials & Custom markings
150mm 1.0 (0.6) 1.0 1.6 • Monel according to ISO 15156 / NACE MR-01-75 wetted parts
• Other pressure connections (Including high pressure)
• Perspex window
0.5% Accuracy on request (Consult Sales) • Orifice Restrictor Screw (standard Ø0.9mm, Ø0.4mm on request)
Higher Ranges on request (Consult Sales)
• Customer logo printed on dial
Over-pressure • Liquid filled / Suitable for liquid filling
• Nitelitegage® (See data sheet)
0 - 100 bar >100 - 600 bar >600 - 1600 bar >1600 - 2500 bar • Vibragauge® (See data sheet)
• Snubbagauge® (See data sheet)
1.25 X FSD 1.15 X FSD 1.10 X FSD 1.10 X FSD • Fitted with electrical contacts (See data sheet)
• Gauge over-pressure up to 130% of FSD
Scale Range Further options on request
Vacuum / Compound to -1 to 0 to -1 to 24 bar
63mm gauge 0 to 1400 bar * Available with a wide range of accessories
100 & 150mm gauges 0 to 2500 bar Syphons, Snubbers, Overrange gauge protectors, Valves, Manifolds,
Or other equivalent units of pressure or vacuum Diaphragm seals, Swivel adaptors, etc ensures that STEWARTS can provide you
PED 97/23/EC limits, GAS Group.1 <1000 bar, GAS Group.2 <3000 bar with the right product to suit any individual application or requirement.
Pressure Connection Thread High Pressure Options Available

1/8”, ¼”, 3/8”, 1/2” NPT, BSP, BSPT (See High Pressure Options)
MAX PRESSURE EN 837-1 HIGH PRESSURE THREAD OPTIONS (Up to 2500 bar)
THREAD EN837 NPT (316ss / Monel) BSP (316ss / Monel) BSPT (316ss / Monel) GAUGE TUBE MP (Up to 20 ksi) TUBE HP (Up to 36 ksi)
1/8" 400 bar 400 bar 400 bar ¼ 3/8 9/16 ¼ 3/8 9/16
¼" 1000 bar 1000 bar 1000 bar 63mm M M
3/8" 1000 bar 1000 bar 1000 bar 100mm M/F M/F M M/F M M
½" 1000 bar 1600 bar 1000 bar 150mm M/F M/F M M/F M M
Ordering Parameters, Please state the following: SIZE, MODEL NO, SCALE RANGE, CONNECTION, PRESSURE MEDIUM & OPTIONAL EXTRAS
DATA SHEET REF: 112-REV01-14
Specifications and dimensions in this leaflet, are subject to change without prior notice.
MODELS-1121, 1122, 1123
All stainless steel construction Safety Pattern Pressure Gauges
Surface mounted gauges should be fitted with distance pieces of not less that 3/4” (20mm) long to allow them to be mounted away from wall or panel.
D E Blow Out
B A Device
F
3 Holes 'L'
@120 - 'M' PCD
C G
MODEL - 1121 MODEL - 1122
Surface Mounted Direct Mounted (Standard)
D B K
Blow Out
Safety Pattern Back
Baffle
D
H
H
3 Holes 'L'
@120 - 'M' PCD
I
MODEL - 1122BC MODEL - 1123

Direct Mounted (Back Connect) Flush Mounted - Screw Fixing
General Arrangement Dimensions in mm, tol' ± 1mm

DIM A B C D E F G H I J K L M CUT OUT
ø mm
63 (2½") 42.4 85.2 20 68.4 42.6 41.8 20.4 18 13.6 62 24.6 3.8 75 66
100 (4") 67.2 132.5 30.7 112.2 65.2 66.9 28.7 34 19.8 99 40.7 6 118 106
150 (6") 67.7 186 31.2 161.7 65.7 92.1 28.7 34 19.8 148 37.7 5.8 168 153
STEWART-BUCHANAN GAUGES LTD

Sales Office & Manufacturing Facility - 7 Garrel Road, Burnside Industrial Estate, Kilsyth, Glasgow G65 9JX, SCOTLAND
Tel: +44 (0)1236 821533 | Fax: +44 (0)1236 824090 | E-mail: sales@stewarts-group.com | Web: stewarts-group.com
DATA SHEET REF: 112-REV01-14
MODEL - MONO
BLOCK AND BLEED MONOFLANGE (With vent plug)
TWO VALVE MANIFOLD Rated as flange
Standard Isolate and Vent Valve (plugged port), Aux process connection.
ISOLATE Red
VENT Yellow Isolate
Vent
Isolate Instrument
EQUALIZE Blue Process

Valve Colour Coding
APPLICATION
Mono-flange manifolds are suitable for gauge or instrument mounting direct to
a system via a standard flange take off point. Various flange ratings available to
suit almost any pressure rating and size within piping systems. Standard applica-
tions include static instrumentation, pressure gauges, transmitters, and pressure
switches.
Due to the compact size of the weight savings are optimised, therefore offshore
installations, F.P.S.O’s can benefit greatly. Furthermore, this slimline format does
not require supporting. All in all any installation requiring a safer, more compact,
lightweight, cost saving pipeline instrument solution can take advantage of the
Stewarts mono-flange manifold range.
'A' FULLY OPEN SIZE
PCD PER
ANSI/ASME STD
VENT
PLUG
'B' A/F
'C'
TYPICAL APPLICATION 'D' THRU'

FLANGE MOUNTING HOLES
- NO. PER ANSI/ASME STD PLUGGED ALTERNATE
INSTRUMENT CONNECTION
1/2" NPT AS STANDARD
OUTLET (INSTUMENT CONNECTION)

1/2" NPT AS STANDARD
9.6
'E'
INLET

Sales Office & Manufacturing Facility - 7 Garrell Road, Burnside Industrial Estate Kilsyth, Glasgow G65 9JX, SCOTLAND
DATA SHEET REF: MONO-REV01-14
MODEL - MONO
BLOCK AND BLEED MONOFLANGE (With vent plug)
TWO VALVE MANIFOLD Rated as flange
Standard Isolate and Vent Valve (plugged port), Aux process connection.
DIMENSION CHART
MONO flanges dimension table
Flange A E Groove No. Of Holes

Std. Class CODE B C D
Size (approx.) RF RTJ Number Holes PCD
1/2" 1A 196 80 89 16 41 - N/A 4 60.3
3/4" 2A 204 86 98.4 15.9 41 - N/A 4 69.8
1" 150 3A 216 100 108 15.9 41 46 R15 4 79.4
1-1/2" 4A 234 116 127 15 41 46 R19 4 98.4
2" 5A 252 136 152.4 19 41 46 R22 4 120.6
1/2" 1B 202 86 95.2 15.9 41 45 R11 4 66.7
3/4" 2B 223 105 117 19 41 46 R13 4 82.5
1" 300 3B 232 116 123.9 19 41 46 R16 4 88.9
1-1/2" 4B 254 136 15.6 22.2 41 46 R20 4 114.3
2" 5B 274 156 165.1 19 41 47 R23 8 127
1/2" 1C 202 86 95.2 15.9 46 45 R11 4 66.7
3/4" 2C 228 110 117 19 46 46 R13 4 82.5
ASME 1" 600 3C 232 116 124 19 46 46 R16 4 88.9
1-1/2" 4C 254 136 155.6 22.2 46 46 R20 4 114.3
2" 5C 274 156 165.1 19 46 48 R23 8 127
1/2" 1D or 1E 228 110 120 22.2 46 46 R12 4 82.5
3/4" 2D or 2E 231 116 130.2 22.2 46 46 R14 4 88.9
900/
1" 3D or 3E 254 136 149 25.4 46 46 R16 4 101.6
1500
1-1/2" 4D or 4E 272 156 177.8 28.6 48 48 R20 4 123.8
2" 5D or 5E 321 205 215.9 25.4 54 56 R24 8 165.1
1/2" 1F 234 122 133.35 22.2 46.2 46.2 R13 4 88.9
3/4" 2F 241 126 139.7 22.2 47.7 47.7 R16 4 95.2
1" 2500 3F 261 146 158.75 25.4 51 51 R18 4 107.95
1-1/2" 4F 301 186 203.2 31.7 60.4 62 R23 4 146.05
2" 5F 340 225 234.95 28.6 66.7 68.3 R26 8 171.45
HOW TO ORDER
MONO FLANGE Part No Creation
SAMPLE PART NO
MONO-1C-O7F-RF-AI-AL (ADD AL WHEN ISO15156 / NACE MR0175 IS REQUIRED)
1 A1 07F RF AI
INLET SIZE & RATING OUTLET CODES FLANGE TYPE 316 Stainless Steel (UNS S31600)
1 = ½” (DN15) A = 150 CLASS 03F = ¼” NPT RF = RAISED FACE AI = 316 Stainless Steel (UNS S31600)
2 = ¾” (DN20) B = 300 CLASS 05F = 3/8” NPT RTJ = RING TYPE JOINT MO = MONEL® 400 (UNS N04400)
3 = 1” (DN25) C = 600 CLASS 07F = ½” NPT HA = HASTELLOY® C-276 ® (UNS N10276)
4 = 1.5” (DN40) D = 900 CLASS 04F = ¼” BSPP IL = INCONEL® 625 (UNS N06625)
5 = 2” (DN50) E = 1500 CLASS 06F = 3/8” BSPP IN = INCOLOY® 825 (UNS N08825)
6 = 2.5” (DN65) F = 2500 CLASS 08F = 3/8” BSPP TI = TITANIUM Gr.2 (UNS R50400)
7 = 3” (DN80) G = PN2.5 13F = ¼” BSPTaper DU = DUPLEX UNS (UNS S31803)
8 = 4” (DN100) H = PN6 14F = 3/8” BSPTaper SD = SUPER DUPLEX (UNS S32760)
J = PN10 15F = ½” BSPTaper HC = HASTELLOY® C-22 (UNS N06022)
K = PN16 Integral SWIVEMAS® SA = SUPER AUSTENITIC ST.ST 6%Mo (UNS S31254)
Connection to Stewarts
L = PN25
Pressure Gauge available
M=PN40 Note: Other materials available on request.
N=PN63
See HOW TO ORDER NEEDLE VALVES & MANIFOLDS Data Sheet For Optional Extras

Sales Office & Manufacturing Facility - 7 Garrell Road, Burnside Industrial Estate Kilsyth, Glasgow G65 9JX, SCOTLAND
DATA SHEET REF: L3-REV01-14
CALIBRATION POTS
CALIBRATION POTS FOR CALIBRATING CHEMICAL PUMPS
APPLICATIONS:
Calibration Pots provide an accurate pump calibration of higher pump

flow rates. The totally enclosed construction assures maximum safety.
The gauge is installed between the suction side of the chemical pump
and the tank. the pump rate is checked by closing the valve between
the tank and gauge and observing the level change in the gauge for one
minute.
EQUIPMENT FEATURES:
• Design utilizes a tank with shielded tubular gauge for maximum protec-
tion from glass breakage
• Provide a means for accurately checking the feed rates of a chemical
metering pump
• Manufactured in PVC, Carbon Steel and 316 Stainless Steel as stan-
dard materials. We can provide other materials to meet your chemical
resistance requirements.
• Individually hand calibrated to assure maximum accuracy
• Customization is always an option, give us your design criteria and we
will design a gauge to fit your needs and specifications
CALIBRATION POTS AVAILABLE WITH

FLANGED OR THREADED CONNECTIONS
COMMON APPLICATION
4
CALIBRATION POTS
CALIBRATION POT SPECIFICATIONS
ORDERING SYSTEM
Calibration Pots
REQUESTED BY: COMPANY:
ADDRESS: CITY: STATE: ZIP:
PHONE: FAX: EMAIL :
Gauge Model Number Material of Constuction Seal Material Calibration Scale

15842 15849 15856 15863 CS = Carbon Steel V = Fluorocarbon GPH = Gallons Per Hour
15843 15850 15857 15864 SS = 316 Stainless Steel) A = Aflas LPH = Liters Per Hour
15844 15851 15858 15865 Other (Please specify) B = Buna-N GPD = Gallons Per Day
15845 15852 15859 15866 T = FEP Encapsulated Silicone LPD = Liters Per Day
15846 15853 15860 15867 E= Ethylene Propylene GBV = Gallons By Volume
15847 15854 15861 • Other Seal Materials Available. LBV = Liters By Volume
15848 15855 15862 Consult Factory For Options. • Other Scale Options Available.
Consult Factory For Options.
• Example Order Number: 15844-SS-T-LPH
• Please contact Kenco to request a quote for options not covered by gauge specifications shown above.

Vordruckregler, Federbelastet: Für Dämpfe, Gase Und Flüssigkeiten

Hochgeladen von

Dokumentinformationen

Originaltitel

Copyright

Verfügbare Formate

Dieses Dokument teilen

Dokument teilen oder einbetten

Freigabeoptionen

Stufen Sie dieses Dokument als nützlich ein?

Sind diese Inhalte unangemessen?

Copyright:

Verfügbare Formate

Vordruckregler, Federbelastet: Für Dämpfe, Gase Und Flüssigkeiten

Hochgeladen von

Copyright:

Verfügbare Formate

Vordruckregler, federbelastet

für Dämpfe, Gase und Flüssigkeiten

Werkstoff: VDR-Körper / medienberührte Innenteile

BG Eintritt Austritt Baumaße Kvs

weitere Ausführungen auf Anfrage * Sonderbaulänge

Einstellbereiche des Vordruckes P1

Kolbenplatte [mm] Ø 139 Ø 119 Ø 99 Ø 84 Ø 64 Ø 48 Ø 38 Ø 27

303 0,35 - 0,70

303 0,35 - 0,70

303 0,25 - 0,40

323 0,25 - 0,40

353 0,25 - 0,50

353 0,20 - 0,43

Pos. Stück Bezeichnung Pos. Stück Bezeichnung

302 1 VDR-Körper 120 1 Kappe

Fluid Section Material: [S] Stainless Steel

Pump Inlet/Outlet Size: 1050e - 1 Inch, 40 gpm (25mm, 151 lpm)

Center Section Material: [S] Stainless Steel

Pump Speed: [0] High Speed

Compressor: [4] No Compressor

Motor: [F] IEC 90 Gearbox

Porting: [S1] SST Standard Porting (NPT)

Seats: [SS] 316 SST

Balls: [PT] PTFE

Diaphragms: [PTS] PTFE/Santoprene Two-Piece

Manifold O-Rings: [PT] PTFE

Graco Part Number: 653034

Configuration Number: 1050S-S04FS1SSPTPTSPT

24B637 - Kit, 1050e Seat, 316 SST

24B645 - Kit, 1050e Ball, PTFE

24F926 - Kit, 1050e Diaphragm, PTFE/Santoprene Two-Piece

24Y526 - Kit, 1050e Electric Center Replacement Kit

24Y624 - Kit, 1050e Electric Center Section Repair Kit

24Y524 - Kit, 1050e Main Shaft Repair Kit

VFD (Variable Frequency Drive)

Integrated Compressor Kit

PTFE/EPDM Overmolded Diaphragms

Dual Inlet Manifold

Variable area flowmeter

© KROHNE 12/2017 - 4006398701 - TD H250-M8 R01 en

1.1 The standard solution for the process industry............................................................... 3

2.1 Technical data................................................................................................................... 6

3.1 Intended use ................................................................................................................... 14

4.1 Electrical connection procedure .................................................................................... 18

2 www.krohne.com 12/2017 - 4006398701 - TD H250-M8 R01 en

1.1 The standard solution for the process industry

12/2017 - 4006398701 - TD H250-M8 R01 en www.krohne.com 3

1.2 Options and variants

For particularly rough environmental conditions, the M8

When installed outdoors, external influences such as

4 www.krohne.com 12/2017 - 4006398701 - TD H250-M8 R01 en

1.3 Functional principle

Figure 1-1: Functional principle

12/2017 - 4006398701 - TD H250-M8 R01 en www.krohne.com 5

2.1 Technical data

6 www.krohne.com 12/2017 - 4006398701 - TD H250-M8 R01 en

12/2017 - 4006398701 - TD H250-M8 R01 en www.krohne.com 7

M8M limit switches

8 www.krohne.com 12/2017 - 4006398701 - TD H250-M8 R01 en

M8E current output

M8E HART® configuration

M8E process variable

12/2017 - 4006398701 - TD H250-M8 R01 en www.krohne.com 9
